WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor

capacitive water level transmitter

water tank level sensor

liquid level transmitter probe

Τόπος καταγωγής:

Anhui, Κίνα

Μάρκα:

WNK

Αριθμό μοντέλου:

WNK8010-TT

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Εγγύηση:
1 Έτος
Προσαρμοσμένη υποστήριξη:
OEM, ODM
Εύρος πίεσης::
0...2~200 μέτρα
Παραγωγή:
4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V
Ακρίβεια:
0,2%FS, 0,5%FS,
Τροφοδοτικό:
12~36VDC
Κατηγορία Προστασίας:
IP68
Εφαρμογή:
Βρόχινο νερό, Πόσιμο νερό, Λύματα, Λύματα, Θαλασσινό νερό
Υλικό στέγασης:
304SS, 316L
Θερμοκρασία λειτουργίας::
-40~85 ℃
Τύπος:
Μετρητής
Υπηρεσία OEM:
OEM, ODM, διαθέσιμη προσαρμογή
Λιμάνι:
Σαγκάη/Νίνγκμπο
Επισημαίνω:

capacitive water level transmitter

,

water tank level sensor

,

liquid level transmitter probe

Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1 τεμ
Συσκευασία λεπτομέρειες
Κάθε σετ σε ένα ξεχωριστό χαρτοκιβώτιο, προστασία με αφρό. Στη συνέχεια στο κύριο κουτί
Χρόνος παράδοσης
5-8 εργάσιμες
Όροι πληρωμής
T/T, Western Union, MoneyGram, Paypal
Δυνατότητα προσφοράς
Αισθητήρας πίεσης στάθμης 2000 Τεμάχια/Τεμάχια ανά μήνα
Περιγραφή του προϊόντος





WNK Threaded Water level sensor for tank level measurement









WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price



Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.



Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 0
WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 1
WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 2
Product Show

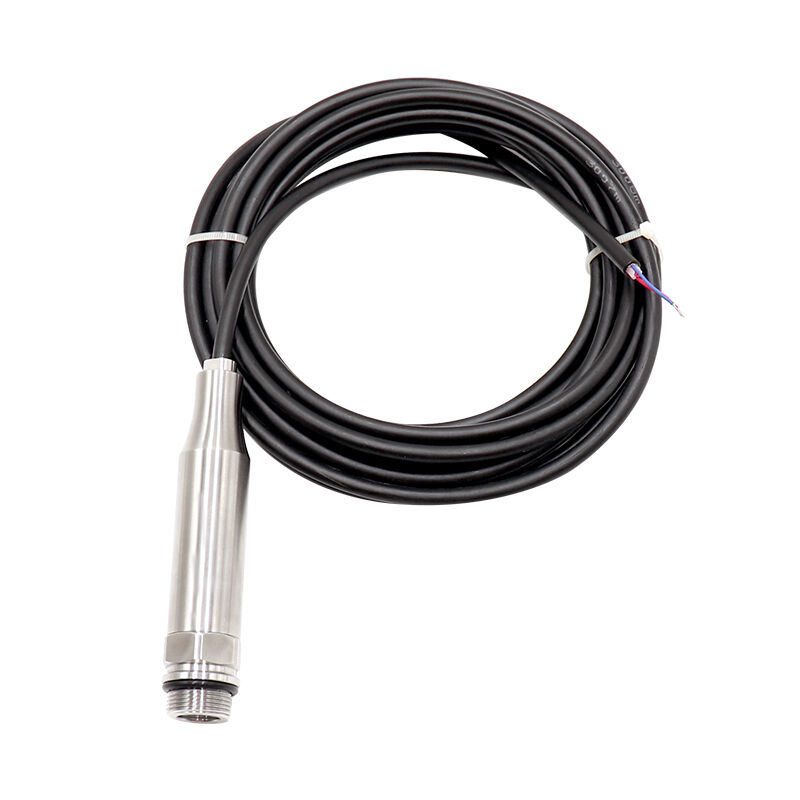

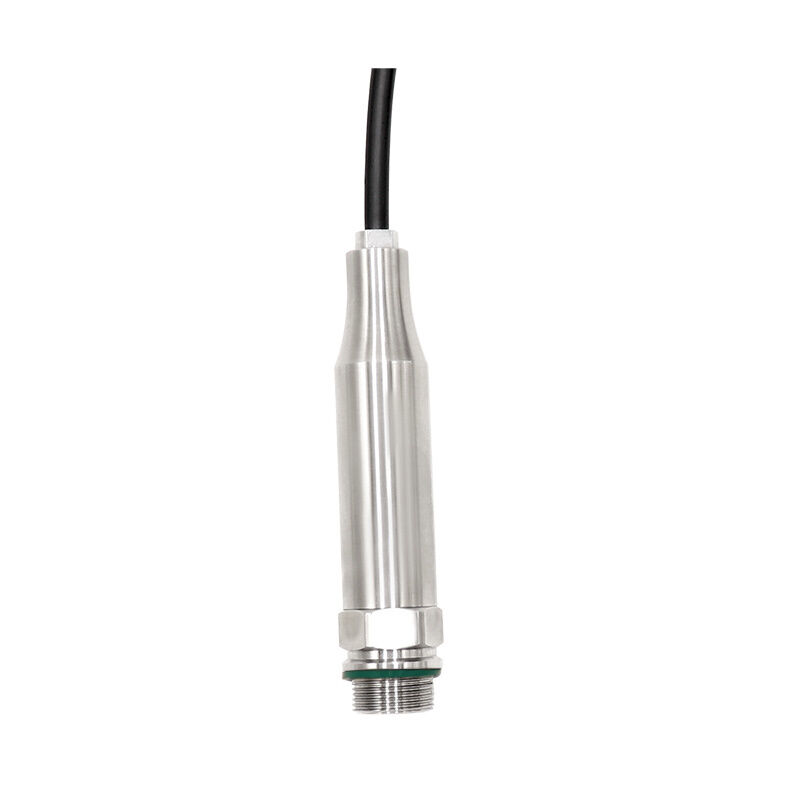

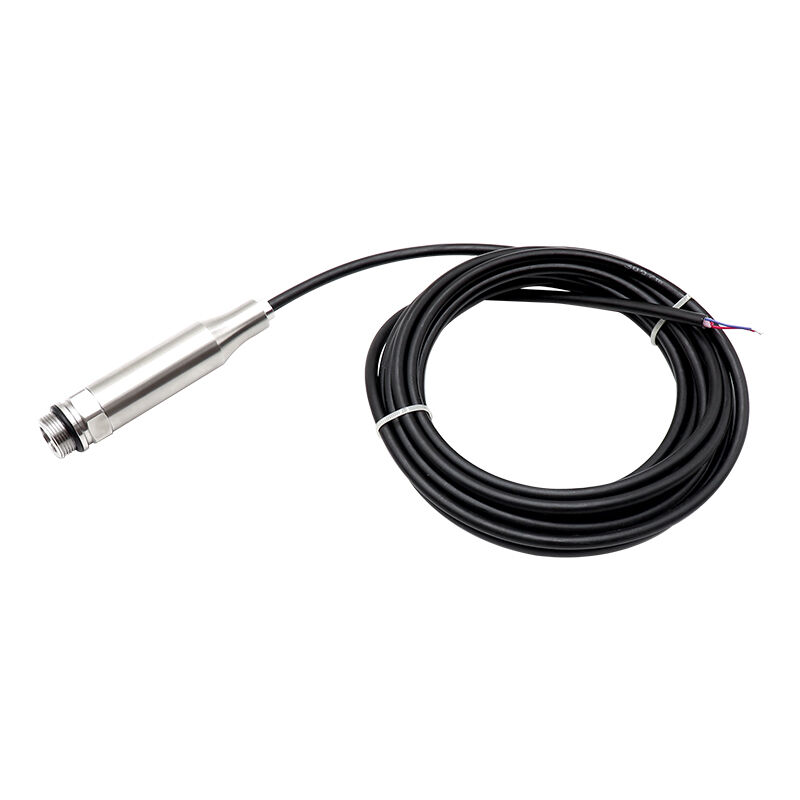

WNK Water Level Transmitter Capacitive Probe Liquid Level Transmitter Water Tank Level Sensor 3
